K72 SERIES DIRECT MOUNTING 4-JAW INDEPENDENT CHUCKS (TYPE C)
Click on product image magnification
Online inquiry
|
Code No |
Chuck Size |
Short-taper No. |

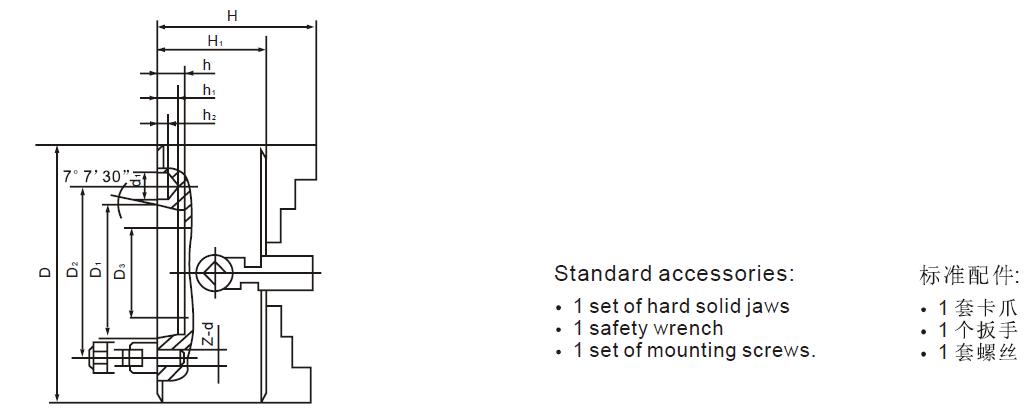

D1 | D2 | D3 | H | H1 | h | h1 | h2 | d1 | z-d |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| K72-160/C3 | 160 | 3 | 53.975 | 75.0 | 45 | 96.5 | 65 | 13 | 10 | - | - | 3-M10 |
| K72-160/C4 | 160 | 4 | 63.513 | 85.0 | 56 | 96.5 | 65 | 13 | 10 | 6.5 | 14.7 | 3-M10 |
| K72-200/C4 | 200 | 4 | 63.513 | 85.0 | 56 | 110 | 75 | 13 | 10 | 6.5 | 14.7 | 3-M10 |
| K72-250/C4 | 250 | 4 | 63.513 | 85.0 | 56 | 115.5 | 80 | 13 | 10 | 6.5 | 14.7 | 3-M10 |
| K72-200/C5 | 200 | 5 | 82.563 | 104.8 | 56 | 110 | 75 | 15 | 12 | 6.5 | 16.3 | 4-M10 |
| K72-250/C5 | 250 | 5 | 82.563 | 104.8 | 56 | 115.5 | 80 | 15 | 12 | 6.5 | 16.3 | 4-M10 |
| K72-300/C5 | 300 | 5 | 82.563 | 104.8 | 56 | 128.5 | 85 | 15 | 12 | 6.5 | 16.3 | 4-M10 |
| K72-320/C5 | 320 | 5 | 82.563 | 104.8 | 56 | 134 | 90 | 15 | 12 | 6.5 | 16.3 | 4-M10 |
| K72-250/C6 | 250 | 6 | 106.375 | 133.4 | 75 | 115.5 | 80 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K72-300/C6 | 300 | 6 | 106.375 | 133.4 | 75 | 128.5 | 85 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K72-320/C6 | 320 | 6 | 106.375 | 133.4 | 75 | 134 | 90 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K72-350/C6 | 350 | 6 | 106.375 | 133.4 | 75 | 141 | 90 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K72-400/C6 | 400 | 6 | 106.375 | 133.4 | 75 | 143 | 95 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K72-500/C6 | 500 | 6 | 106.375 | 133.4 | 75 | 161 | 106 | 16 | 13 | 6.5 | 19.5 | 4-M12 |
| K72-250/C8 | 250 | 8 | 139.719 | 171.4 | 95 | 115.5 | 80 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K72-320/C8 | 320 | 8 | 139.719 | 171.4 | 95 | 134 | 90 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K72-400/C8 | 400 | 8 | 139.719 | 171.4 | 125 | 143 | 95 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K72-500/C8 | 500 | 8 | 139.719 | 171.4 | 125 | 161 | 106 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K72-630/C8 | 630 | 8 | 139.719 | 171.4 | 130 | 180 | 115 | 18 | 14 | 8 | 24.2 | 4-M16 |
| K72-400/C11 | 400 | 11 | 196.869 | 235.0 | 160 | 143 | 95 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K72-500/C11 | 500 | 11 | 196.869 | 235.0 | 160 | 161 | 106 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K72-630/C11 | 630 | 11 | 196.869 | 235.0 | 180 | 180 | 115 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K72-800/C11 | 800 | 11 | 196.869 | 235.0 | 180 | 210 | 135 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K72-1000/C11 | 1000 | 11 | 196.869 | 235.0 | 180 | 241 | 150 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K72-1250/C11 | 1250 | 11 | 196.869 | 235.0 | 180 | 256 | 165 | 20 | 16 | 10 | 29.4 | 6-M20 |
| K72-630/C15 | 630 | 15 | 285.775 | 330.2 | 180 | 180 | 115 | 21 | 17 | 10 | 35.7 | 6-M24 |
| K72-800/C15 | 800 | 15 | 285.775 | 330.2 | 180 | 210 | 135 | 21 | 17 | 10 | 35.7 | 6-M24 |
| K72-1000/C15 | 1000 | 15 | 285.775 | 330.2 | 280 | 241 | 150 | 21 | 17 | 10 | 35.7 | 6-M24 |
| K72-1250/C15 | 1250 | 15 | 285.775 | 330.2 | 280 | 256 | 165 | 21 | 17 | 10 | 35.7 | 6-M24 |
| K72-1600/C15 | 1600 | 15 | 285.775 | 330.2 | 280 | 266 | 175 | 21 | 17 | 10 | 35.7 | 6-M24 |
