3 - JAW EXTRA LONG JAW STROKE THROUGH HOLE POWER CHUCK

點擊產品圖片放大

在線詢盤

品牌/Brand：NTH

三爪曲柄型大通孔夾頭，超長行程。

夾頭滑動面經硬化處理及精密研磨，并直接潤滑。

其安裝連接方式與其他中空夾頭一樣，不需要更換拉桿。

高剛性、高精度及高轉速。

It‵s a crank type 3-jaw power chuck, and extra long jaw stroke.

Matching surfaces of all parts are hardened, ground and lubricated directly

Construction of high rigidity and high clamping accuracy and high rotary speed.

The connecting spec is same as other "Through-hole power chuck", No need change the "Draw tube"

尺寸單位/Size unit: mm

規格 Spec 型號 Model	楔心行程 Plunger stroke mm	爪行程直徑 Jaw stroke Dia. mm	最大夾持直徑 Max chucking Dia. mm	最小夾持直徑 Min chucking Dia. mm	容許油壓缸推力 Max.D.B.Pull kgf
BL-05 A4	12	18	135	6	15.6(1590)
BL-06 A5	15	24	170	18	23.5(2400)
BL-08 A5	20	32	215	25	34.3(3500)
BL-08 A6	20	32	215	25	34.3(3500)
BL-10 A6	25	37.5	260	47	47.7(4870)
BL-10 A8	25	37.5	260	47	47.7(4870)
BL-12 A8	30	45	315	54	64.7(6600)
BL-15 A11	35	52	385	50	84.3(8600)

規格 Spec 型號 Model	最大夾持力 Max clamping force kgf	最高轉速 Max RPM	慣性矩 I kg*m2	重量 Weight kg	帶法蘭重量 Weight(Ad.) kg	適合油壓缸 Matched cylinders
BL-05 A4	17.2(1750)	4200	0.019	7.2	8	H-1036
BL-06 A5	26.0(2650)	3600	0.063	13	14.8	H-1246
BL-08 A5	35.0(4150)	3000	0.175	23	25.9	H-1552
BL-08 A6	35.0(4150)	3000	0.175	23	24.1	H-1552
BL-10 A6	61.0(5700)	2400	0.347	38	45	H-1875
BL-10 A8	61.0(5700)	2400	0.347	38	43.5	H-1875
BL-12 A8	68.0(7650)	2100	0.827	62	67.5	H-2091
BL-15 A11	68.0(6930)	1600	2.58	136	143	H-2511

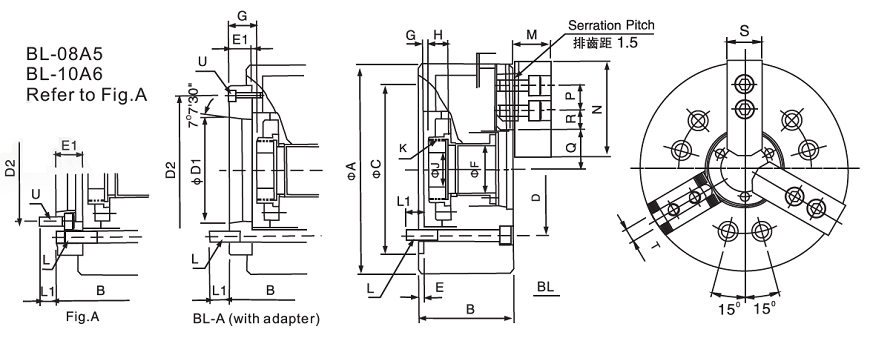

規格 Spec 型號 Model	A	B	B (Ad.)	C(H6)	D	D1	D2	E	E1	F	Gmax	Gmax(Ad.)	Gmin	Gmin(Ad.)	H	J
BL-05 A4	135	65	76	110	82.6	63.51	96	4	15	32	1	16	-11	4	20	12
BL-06 A5	168	84	97	140	104.8	82.56	116	5	18	42	6.5	24.5	-8.5	9.5	19	20
BL-08 A5	210	96	118	170	133.4	82.56	104.8	5	23	52	7	34	-13	14	20	30
BL-08 A6	210	96	114	170	133.4	106.38	150	5	17	52	7	30	-13	10	20	30
BL-10 A6	254	110	130	220	171.5	106.38	133.4	5	25	70	8	33	-17	8	25	45
BL-10 A8	254	110	123	220	171.5	139.72	190	5	18	70	8	26	-17	1	25	45
BL-12 A8	304	127	140	220	171.5	139.72	190	6	18	91	15	33	-15	3	28	50
BL-15 A11	385	150	166	300	235	196.87	260	6	22	120	12.5	34.5	-22.5	-0.5	39	60

規格 Spec 型號 Model	K max	L	L1	L1(Ad.)	M	N	P	Q max	Q min	R max	R min	S	T	U
BL-05 A4	M40×1.5	3-M10	15	15	31	62	14	23	13.75	31	22	25	10	3-M6
BL-06 A5	M55×2	6-M10	18	15	37	73	20	25.7	13.75	39	27	31	12	3-M6
BL-08 A5	M60×2	6-M12	18	19	38	95	25	28.25	16.25	49.25	33.25	35	14	6-M10
BL-08 A6	M60×2	6-M12	18	20	38	95	25	28.25	16.25	49.25	33.25	35	14	3-M6
BL-10 A6	M85×2	6-M16	22	20	43	110	30	35.25	17.25	64.25	45.25	40	16	6-M12
BL-10 A8	M85×2	6-M16	22	25	43	110	30	35.25	17.25	64.25	45.25	40	16	3-M8
BL-12 A8	M100×2	6-M16	20	19	51	130	30	46.25	19.25	77	54.5	50	21	3-M8
BL-15 A11	M130×2	6-M20	33	31	63	165	43	51.25	27.25	94.25	68.25	62	22	3-M10

保留技術更改的權利,恕不另行通知 Subject to technology changes without prior information
非標需求可定做 Non-standard requirements can be made
