SUPER LONG STROKE 3 JAW POWER CHUCK

點擊產品圖片放大

在線詢盤

品牌/Brand：NTH

三爪曲柄型大通孔夾頭，超級長行程。

夾頭滑動面經硬化處理及精密研磨，并直接潤滑。

其安裝連接方式與其他中空夾頭一樣，不需要更換拉桿。

高剛性、高精度及高轉速。

It‵s a crank type 3-jaw power chuck, and super extra long jaw stroke.

Matching surfaces of all parts are hardened, ground and lubricated directly

Construction of high rigidity and high clamping accuracy and high rotary speed.

The connecting spec is same as other "Through-hole power chuck", No need change the "Draw tube"

尺寸單位/Size unit: mm

規格 Spec 型號 Model	楔心行程 Plunger stroke mm	爪行程直徑 Jaw stroke Dia. mm	最大夾持直徑 Max chucking Dia. mm	最小夾持直徑 Min chucking Dia. mm	容許油壓缸推力 Max.D.B.Pull KN
KBL-206	20	32	165	10	22.6
KBL-208	25	40	210	28	31.4
KBL-210	28	42	254	42	37.3
KBL-212	35	50	304	54	49

規格 Spec 型號 Model	最大夾持力 Max clamping force KN	最高轉速 Max RPM	最大使用壓力 Max.pressure Mpa	重量 Weight kg	適合油壓缸 Matched cylinders
KBL-206	19.6	3600	2.5	11.5	S-100
KBL-208	27.5	3000	2.5	23.6	S-125
KBL-210	34.3	2400	2.8	34.5	S-125
KBL-212	48	2100	2.8	60.8	S-150

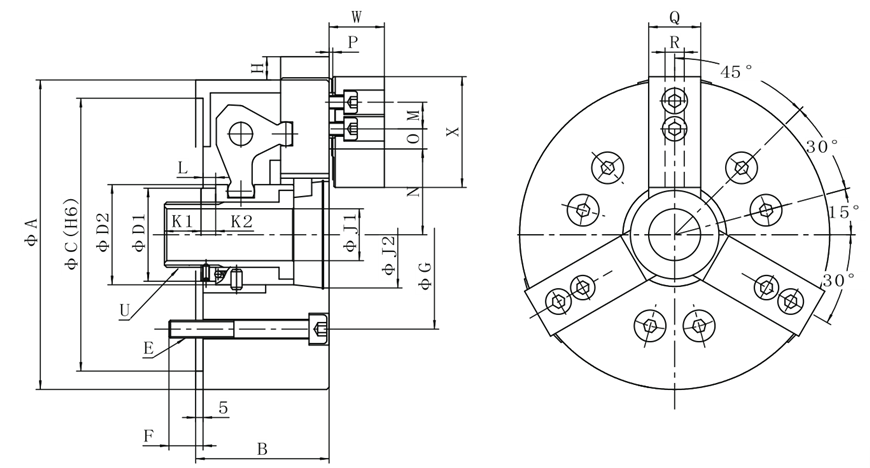

規格 Spec 型號 Model	A	B	C(H7)	D1	D2	E	F	G	H max	J1	J2(H9)	K1
KBL-206	165	80	140	45	54	6-M10	16	104.8	10	21	60	20
KBL-208	215	93	170	65	74	6-M12	20	133.4	11.5	36	80	25
KBL-210	254	111	220	82	96	6-M12	17	171.4	13	55	105	25
KBL-212	304	130	220	92	102	6-M16	22	171.4	15	62	110	30

規格 Spec 型號 Model	K2	L	M	N	O	P	Q	R	T	U	W	X
KBL-206	10	-2--18	20	23.8--39.8	9--30	3	31	12	43	M30*2	37	73
KBL-208	10	-4--21	25	33.8--53.8	10--35	5	35	14	55	M45*2	40	95
KBL-210	12	-2--26	30	46.3--67.3	13.5--37.5	5	40	16	62	M65*2	45	110
KBL-212	14	-3.5--31.5	30	48.3--73.3	14--52	5	50	21	77	M72*2	53	130

保留技術更改的權利,恕不另行通知 Subject to technology changes without prior information
非標需求可定做 Non-standard requirements can be made
